Description

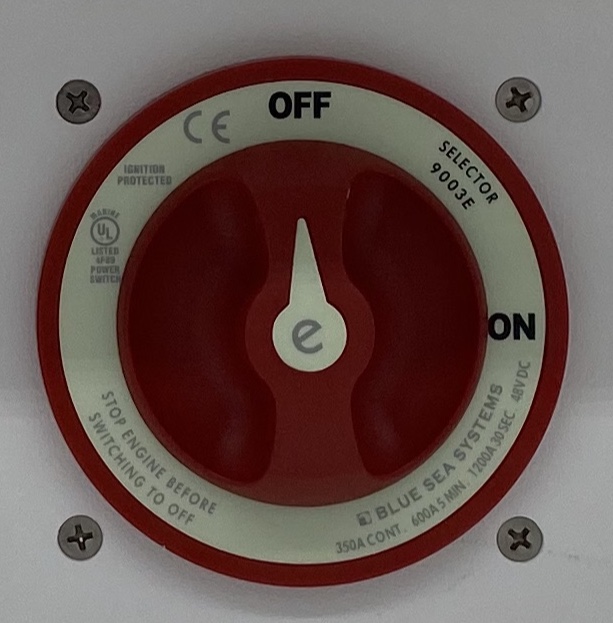

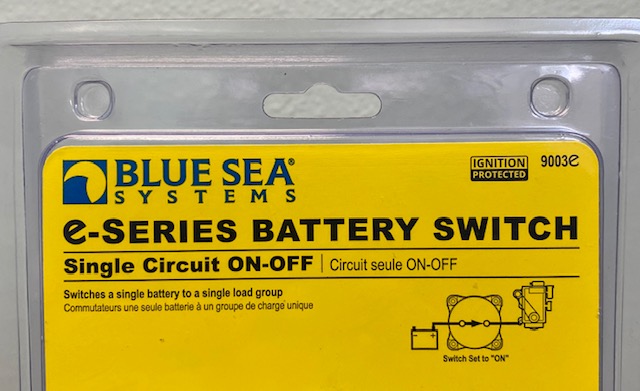

Switches a single battery to a single load group
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
Specifications | |
---|---|
Switch Type | Single Circuit ON-OFF |
Color | Red |
Switch Positions | 2 |
Battery Combine | No |
Alternator Field Disconnect | No |
Maximum Voltage | 48V DC |
Terminal Stud Torque | 140 in-lb (15.82 Nm) |
Continuous Rating | 350A |
Intermittent Rating | 600A (5 min) |
Cranking Rating 30 sec | 1200A |
Battery Inputs | 1 |
Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
Mounting Holes | Accept 1/4″ (M6) Screw |
Stud Material | Tinned Copper |
Terminal Stud Size | 3/8″ – 16 (M10) |
Weight | 1.30lb (0.59 kg) |
