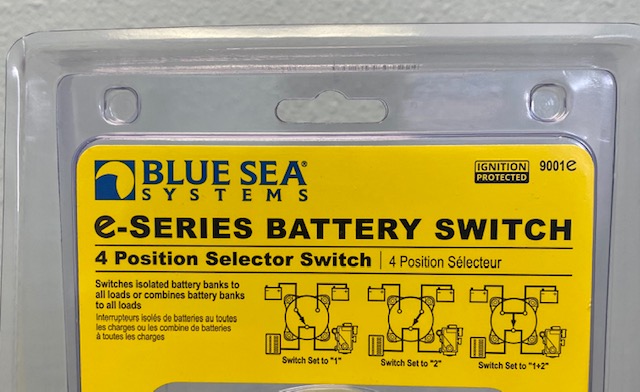

e-Series On Off Battery Switch 9001e

$50.00

Description

e-Series Selector Battery Switch

9001e

Switches isolated battery banks to all loads or combines battery banks to all loads

  • Make-before-break contact design allows switching between battery banks without power interruption
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
Specifications
Switch Type Selector 4 Position
Color Red
Switch Positions 4
Battery Combine Yes
Alternator Field Disconnect No
Maximum Voltage 32V DC
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating 350A
Intermittent Rating 600A (5 min)
Cranking Rating 30 sec 1200A
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept 1/4″ (M6) Screw
Stud Material Tinned Copper
Terminal Stud Size 3/8″ – 16 (M10)
Weight 1.30lb (0.59 kg)
