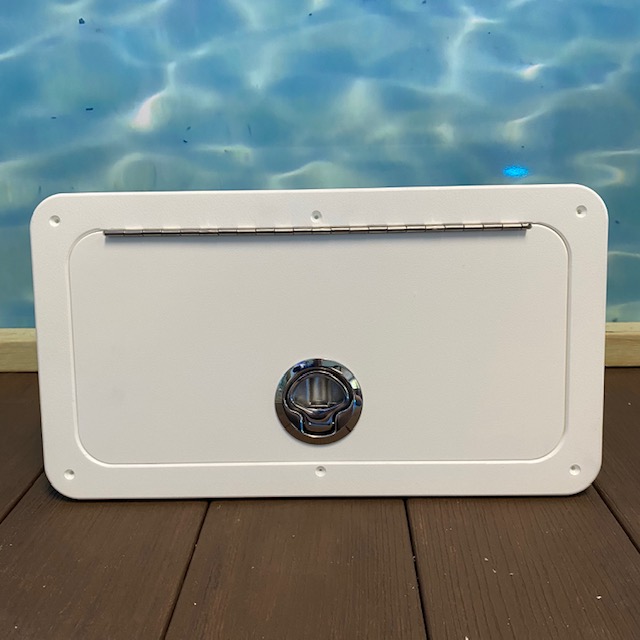

Battery Switch Box – Double

$165.00$265.00

Overall Dimensions: 8 1/2″ Tall x 15 1/2″ Wide 5 1/2″ Deep

Cut Out Dimensions: 6 1/2″ Tall  x 13 1/2″ Wide

Required Depth: 5 1/2″

Clear

Description

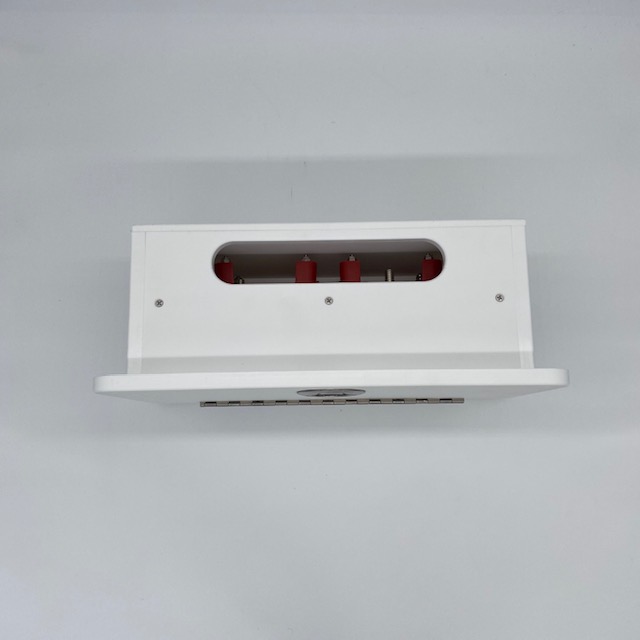

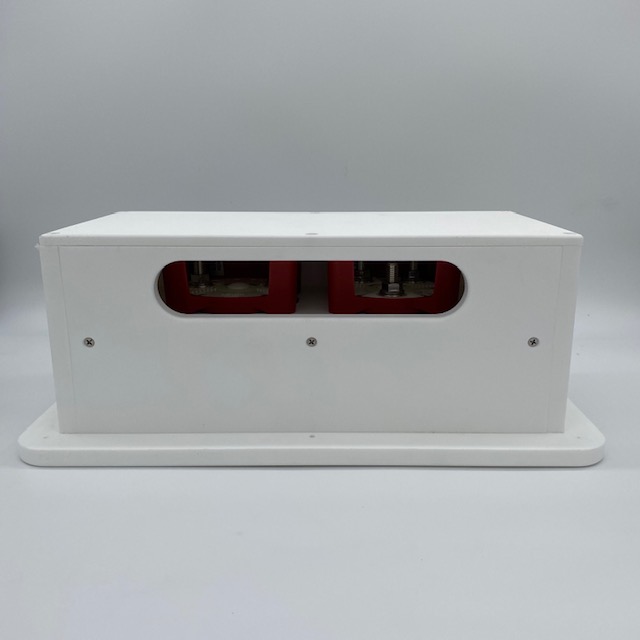

The perfect way to keep your battery switches accessible, clean and organized.  There is a smooth rounded over wire chase to keep the wires from rubbing raw.  The box is designed to open up so that it will always fall to a closed position.  Stainless hardware, including the hinge.

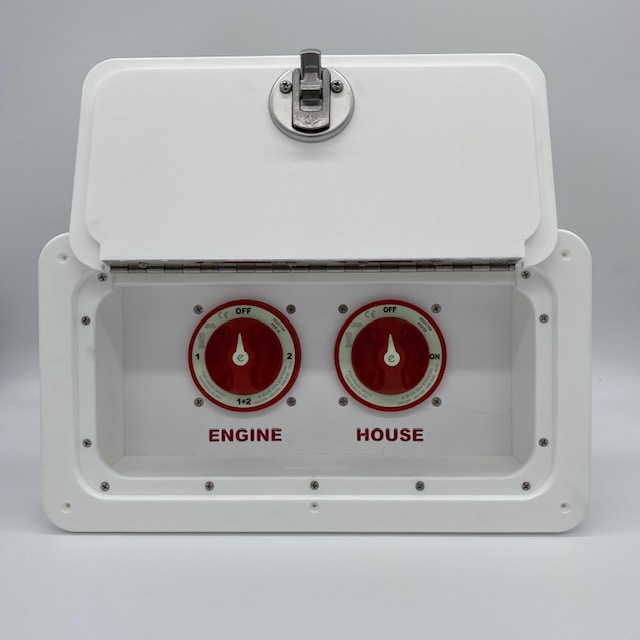

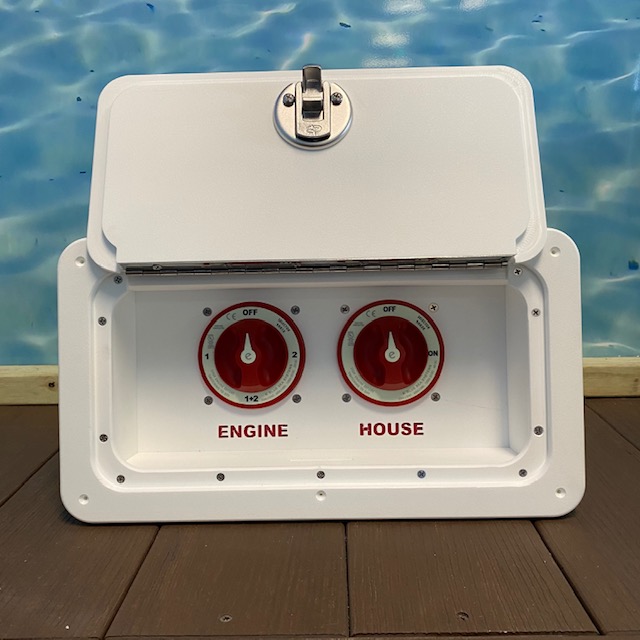

Please select to include switches or not.  If ordered with switch you will receive 2 Blue Seas switches 1- 9001e and 1-9003e (as pictured).  You can also decline switches and order them separately on our site.

9001e switch:

Switches isolated battery banks to all loads or combines battery banks to all loads

  • Make-before-break contact design allows switching between battery banks without power interruption
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
Specifications
Switch Type Selector 4 Position
Color Red
Switch Positions 4
Battery Combine Yes
Alternator Field Disconnect No
Maximum Voltage 32V DC
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating 350A
Intermittent Rating 600A (5 min)
Cranking Rating 30 sec 1200A
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept 1/4″ (M6) Screw
Stud Material Tinned Copper
Terminal Stud Size 3/8″ – 16 (M10)
Weight 1.30lb (0.59 kg)





9003e switch:

Switches a single battery to a single load group

  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
Specifications
Switch Type Single Circuit ON-OFF
Color Red
Switch Positions 2
Battery Combine No
Alternator Field Disconnect No
Maximum Voltage 48V DC
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating 350A
Intermittent Rating 600A (5 min)
Cranking Rating 30 sec 1200A
Battery Inputs 1
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept 1/4″ (M6) Screw
Stud Material Tinned Copper
Terminal Stud Size 3/8″ – 16 (M10)
Weight 1.30lb (0.59 kg)



Please feel free to call and ask about any additional needs or custom sizes.

Additional information

Dimensions 15.5 × 5.5 × 8.5 in
Switches

Do Not Include Switches, Include Blue Seas Battery Switches
